Specifications
|
||
|---|---|---|

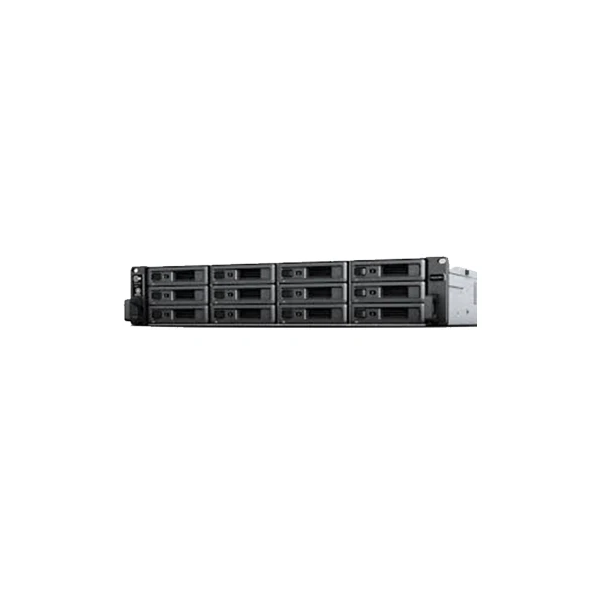

| Model | Synology RackStation RS3618xs | |
| Form Factor | 2U Rackmount | |
| CPU | Intel Xeon D-1521, 4-core, 2.4 GHz (up to 2.7 GHz) | |
| RAM | 8 GB DDR4 (expandable up to 32 GB) | |
| Storage Bays | 12 x 3.5″/2.5″ SATA HDD/SSD | |
| Maximum Raw Capacity | Up to 108 TB (with 12 x 12 TB drives) | |
| RAID Support | RAID 0, 1, 5, 6, 10, JBOD | |
| Network Interface | 2 x 10GbE SFP+ ports, 2 x 1GbE RJ-45 ports | |
| Expansion Slots | 2 x PCIe 3.0 slots for additional network cards or storage controllers | |
| USB Ports | 2 x USB 3.0, 2 x USB 2.0 | |
| Power Supply | Dual redundant 500W PSU | |
| Dimensions (H x W x D) | 88 mm x 482 mm x 720 mm | |
| Weight | Approximately 14.6 kg (32.2 lbs) | |
| Operating System | Synology DiskStation Manager (DSM) | |
| Applications | File sharing, backup solutions, virtualization, surveillance, and more | |
|
