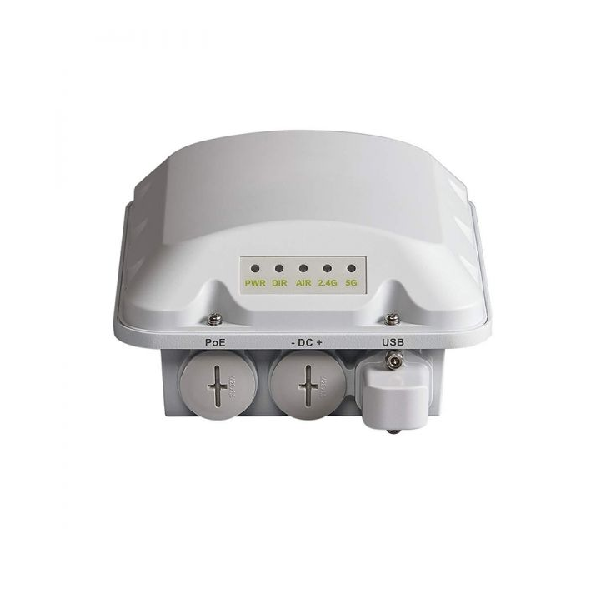

901-T310-WW61 Specification |
|
|
WI-FI |
|
| Wi-Fi Standards | IEEE 802.11a/b/g/n/ac Wave 2 |
| Supported Rates | 802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS=1to2 for VHT20/40/80
802.11n: 6.5 Mbps to 300Mbps (MCS0 to MCS15) 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps 802.11b: 11, 5.5, 2 and 1 Mbps |
| Supported Channels | 2.4GHz: 1-13
5GHz: 36-64, 100-144, 149-165 |
| MIMO | 2×2 SU-MIMO
2×2 MU-MIMO |
| Spatial Streams | 2 SU-MIMO
2 MU-MIMO |
| Radio Chains and Streams | 2×2:2 |
| Channelization | 20, 40, 80MHz |
| Security | WPA-PSK, WPA-TKIP, WPA2-Personal, WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise, AES, 802.11i, Dynamic PSK
WIPS/WIDS |
| Other Wi-Fi Features | WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v
Hotspot, Hotspot 2.0 Captive Portal WISPr |
| Antenna Type | BeamFlex+ adaptive antennas with polarization diversity |
| BeamFlex+ SINR Transmit Power Gain | Up to 6 dB |
|
Ruckus Radio Management |
|
| Antenna Optimization | BeamFlex+
Polarization Diversity with Maximal Ratio Combining (PD-MRC) |
| Wi-Fi Channel Management | ChannelFly
Background Scan Based |
| Client Density Management | Adaptive Band Balancing
Client Load Balancing Airtime Fairness Airtime-based WLAN Prioritization |
| SmartCast Quality of Service | QoS-based scheduling
Directed Multicast L2/L3/L4 ACLs |
| Mobility | SmartRoam |
| Diagnostic Tools | Spectrum Analysis
SpeedFlex |
|
Networking |
|
| Controller Platform Support | SmartZone
ZoneDirector Standalone |
| Mesh | SmartMesh™ wireless meshing technology. Self-healing Mesh |
| IP | IPv4, IPv6 |
| VLAN | 802.1Q (1 per BSSID or dynamic per use based on RADIUS)
VLAN Pooling Port-based |
| 802.1x | Authenticator & Supplicant |
| Tunnel | L2TP, GRE, soft-GRE |
| Policy Management Tools | Application Recognition and Control
Access Control Lists Device Fingerprinting Rate Limiting |
| IoT Capbale | Yes |
|
Physical Interfaces |
|
| Ethernet | 1 x 1GbE port, RJ-45 |
| USB | 1 USB 2.0 port, Type A |
| Ingress Protection | IP-67 |
|
Physical Characteristics |
|
| Physical Size | 18.1(L) x 15.1(W) x 7.9 (H) cm
7.1(L) x 5.9(W) x 3.1(H) in. |
| Ingress Protection | IP-67 |
| Mounting | Wall, Drop ceiling, Desk
Pole Mount Diameter 1″ to 2.5″ |
| Operating Temperature | -20ºC -(4ºF) to 65ºC (149ºF) |
| Operating Humidity | Up to 95%, non-condensing |
|
Performance And Capacity |
|
| Peak PHY Rates | 2.4GHz: 300Mbps
5GHz: 867Mbps |
| Client Capacity | Up to 512 clients per AP |
| SSID | Up to 31 per AP |
