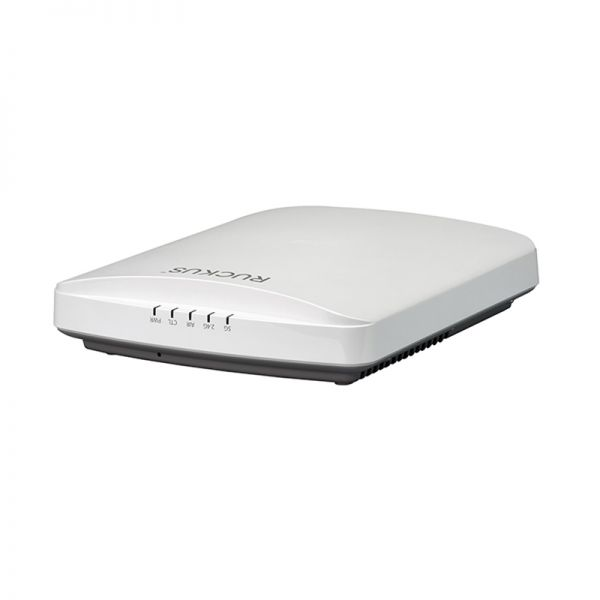

901-R650-WW00 Specification |
|
| Feature/Description | Mid-range
Wi-Fi 6 (802.11ax) dual- concurrent AP with MU-MIMO and BeamFlex+ |
| Maximum PHY rate | 2400 Mbps (5GHz)
574 (2.4GHz) |
| Wi-Fi technology | 802.11ax (2.4GHz, 5GHz) Wi-Fi CERTIFIED 6™ |
| Concurrent users | 512 |
| Radio chains: streams | 5GHz: 4×4:4 MU-MIMO
2.4GHz: 2×2:2 MU-MIMO |
| Antenna patterns (per band) | 128 |
| Antenna gain | Up to 3dBi |
| PD-MRC | Yes |
| Rx sensitivity (2.4/5GHz) | -101dBm |
| ChannelFly | Yes |
| SmartMesh | Yes |
| USB (IoT Ready) | Yes |
| Ethernet ports | 1 x 1 GbE
1 x 2.5 GbE |
| Integrated BLE/ZigBee | — |
| WLAN Control and Management | · ZoneDirector
· SmartZone · RUCKUS Cloud |
