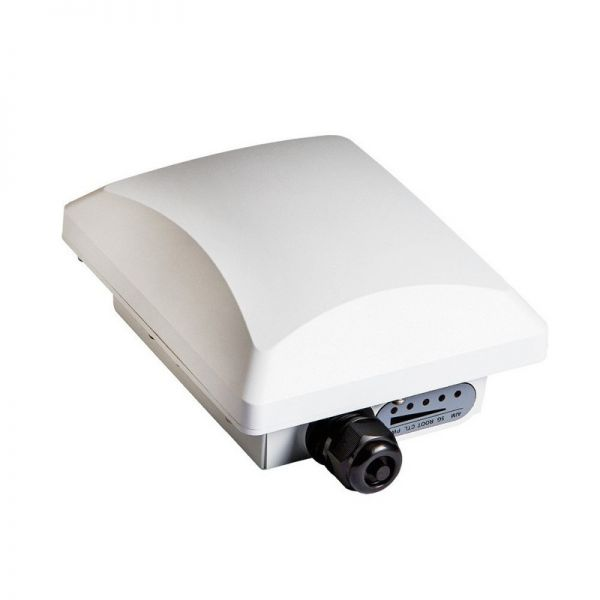

Ruckus P300 Specification |
|
|
WI-FI |
|
| Wi-Fi Standards | IEEE 802.11a/n/ac
5GHz operation |
| Supported Rates | 802.11ac: 6.5 to 1167Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)
802.11n: 6.5 Mbps to 600Mbps (MCS0 to MCS15) 802.11a: 54, 48, 36, 24, 18, 12, 9, 6Mbps |
| Modulation | OFDM |
| Radio Chains | 2×2 |
| Spatial Streams | 2 |
| Radio Chains and Streams | 2×2:2 |
| RF Power Output | 22 dBm |
| Channelization | 20, 40, 80MHz |
| Frequency Band | IEEE 802.11ac: 5.15 – 5.875GHz |
| Security | WPA2 AES |
| Certifications | U.S., Europe, Argentina, Australia, Brazil, Canada, Chile, China, Colombia, Costa Rica, Hong Kong, India, Indonesia, Israel, Japan, Korea, Malaysia, Mexico, Peru, Philippines, Russia, Saudi Arabia, Singapore, South Africa, and Taiwan
WEEE/RoHS compliance |
|
RF |
|
| Maximum EIRP | Up to 36dBm |
| Physical Antenna Gain | Up to 14dBi |
| Minimum RX Sensitivity | Up to -96dBm |
|
PERFORMANCE AND CAPACITY |
|
| Peak PHY Rates | 5GHz: 867Mbps |
| Target UDP Throughput | Up to 500Mbps
Up to 250Mbps at 2.6 km/1.6 mi |
| Maximum Link Distance | 12 kilometers |
| Point-to-Multipoint | 30 degrees of coverage from the one root bridge with internal antenna to many receiving bridges
120 degrees of coverage when used with optional external antenna |
| Client Capacity | 1-8 Client Bridges |
|
PHYSICAL CHARACTERISTICS |
|
| Power | 802.3af Power over Ethernet |
| Physical Size | 18 cm (L), 15 cm (W), 8.6 cm (H)
7” (L), 5.9” (W), 3.4” (H) |
| Ethernet Ports | 1 port, auto MDX, auto-sensing 10/100/1000 Mbps, RJ-45
Power over Ethernet (802.3af) |
| Antenna | 14 dBi internal directional antenna
30 degree 3dB beamwidth Two external N-Type antenna connectors |
| Lock Options | Pad-Eye for locking devices |
| Environmental Conditions | IP-67 rated |
| Operating Temperature | -40°C to 65°C (-40°F to 149°F) |
| Power Draw | Quiescent 6.5W
Typical 7.5W Peak 11W |
