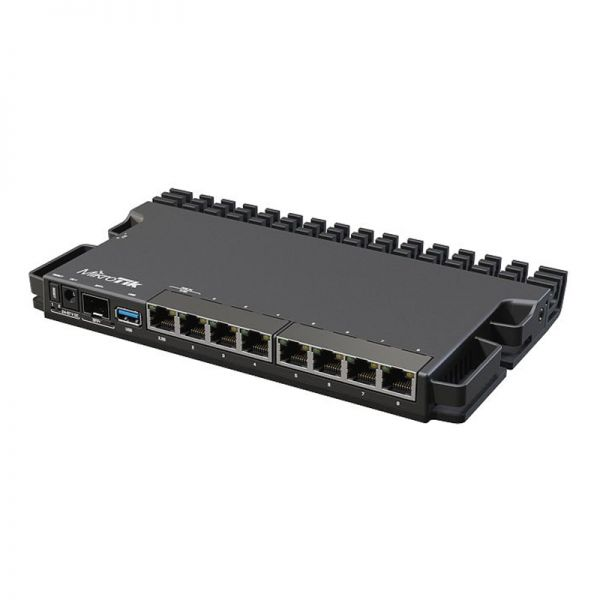

Mikrotik RB5009UG-plus-S-plus-IN Specifications |
|
| Brand | Mikrotik |
| Model | RB5009UG-plus-S-plus-IN |
| Processor | 4 core AL21400 1700 MHz |
| RAM | 1 GB |
| Storage Size | 1 GB NAND |
| Operating System | RouterOS, License level 6 |
| 10/100/1000 Ethernet Ports | 8 |
| 2.5G Ethernet Ports | 1 |
| SFP+ Ports | 1 |
| USB Port | USB 3.0 Type A |
| Supported Input Voltage | 12 V - 57 V (DC jack or PoE-in) |
| Power Consumption | Up to 28W |
| PoE in | 802.3af/at |
| Dimensions | 272 x 191 x 44 mm |
| Operating Temperature | -40��C to +70��C |
| Max Power consumption without attachments | 24W |
| Number of DC inputs | 3 (DC jack, PoE-IN, USB) |
| CPU | AL21400 |
| CPU core count | 4 |
| CPU nominal frequency | 1700 MHz |
| License level | 6 |
