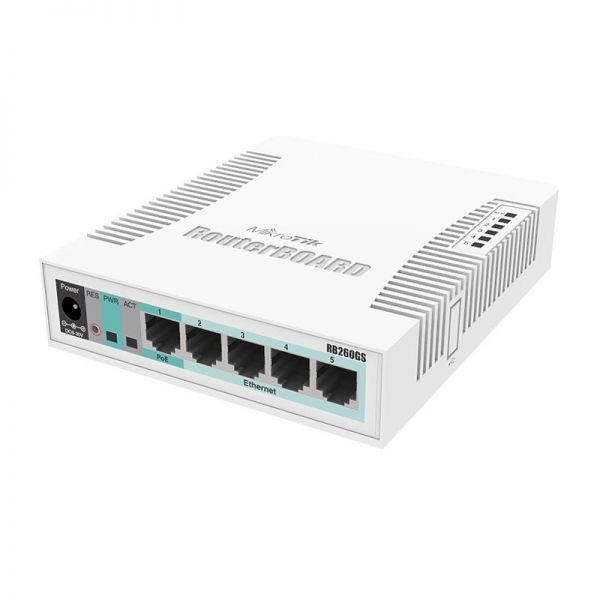

Mikrotik CSS106-5G-1S Specifications |
|
| Brand | Mikrotik |
| Model | CSS106-5G-1S |
| Ethernet Ports | 5x Gigabit Ethernet |
| SFP Ports | 1x SFP cage |
| Switching Capacity | 10 Gbps |
| Forwarding Rate | 7.44 Mpps |
| Jumbo Frames Support | Yes, up to 9,720 bytes |
| Operating System | SwOS |
| Dimensions | 113 x 89 x 28 mm |
| Case Type | Plastic |
| Max Power Consumption | 11W |
| Input Voltage | 11-30V DC |
| Operating Temperature | -40??C to +70??C |
| Certifications | CE, EAC, ROHS |
| Cooling | Passive |
| LED Indicators | Yes |
| Mounting Options | Desktop |
| Management | Web-based GUI |
| VLAN Support | Yes |
| QoS | Yes |
| MAC Address Table Size | 2K entries |
