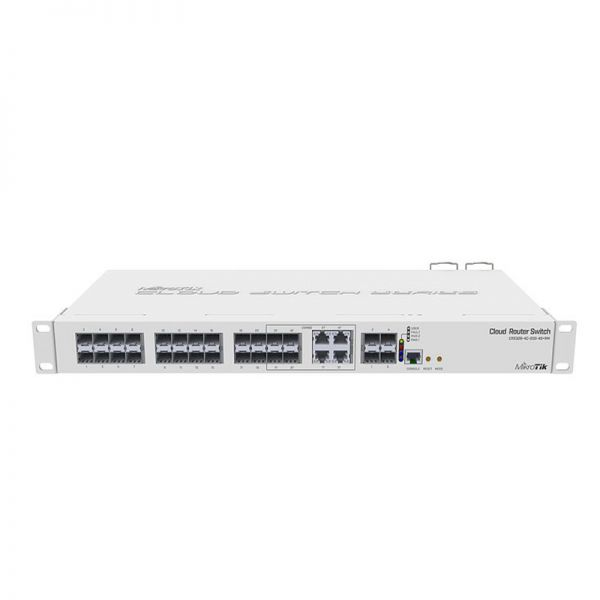

Mikrotik CRS328-4C-20S-4S-plus-RM Specifications |
|
| Type | Smart Switch |
| SFP Cages | 20 x SFP cages |
| SFP+ Cages | 4 x SFP-plus+ cages |
| Combo Ports | 4 x Combo ports (Gigabit Ethernet or SFP) |
| CPU | 800MHz |
| RAM | 512MB |
| Form Factor | 1U rackmount case |
| Power Supplies | Dual Power Supplies |
| Operating Systems | RouterOS L5 or SwitchOS (Dual Boot) |
| Operating System Features | Capable of switching operation and routing |
| Management | Web-based GUI, CLI via Telnet, SSH, and Console port |
| Network Protocols | IPv4, IPv6, VLANs, VPN |
| Dimensions | 443 x 144 x 44 mm |
| Power Input | 100-240V AC |
| Max Power Consumption | Data not provided |
| Operating Temperature | -20��C to 60��C |
| L3 Hardware Offloading | Yes |
| Supported SFP Modules | 1.25G, 10G (details to be verified with module specs) |
| Ethernet Interface | None (All ports are either SFP or SFP+) |
| Software Upgrade Feature | Yes, via RouterOS or SwitchOS |
| Port Isolation | Yes |
