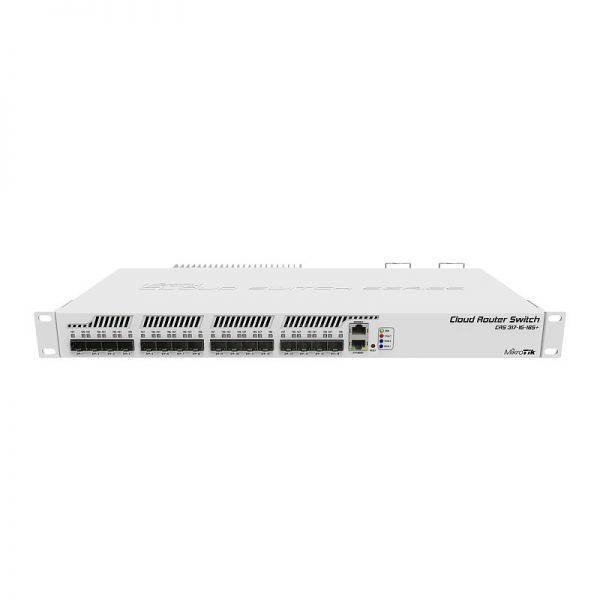

Mikrotik CRS317-1G-16S-plus-RM Specifications |
|
| Product Brand | Mikrotik |
| Product Name | CRS317-1G-16S-plus-RM |
| Type | Smart Switch |
| LAN Ports | 1 x Gigabit LAN |
| SFP+ Cages | 16 x SFP-plus-cages |
| CPU | Dual Core 800MHz |
| RAM | 1GB |
| Form Factor | 1U rackmount |
| Cooling | Passive cooling case |
| Power Supply | Dual Power Supplies |
| Operating System | RouterOS / SwitchOS (Dual Boot) |
| Dimensions (WxHxD) | 443 x 44 x 145 mm |
| Certifications | CE, EAC, ROHS |
| Networking Interfaces | 1 x 10/100/1000 Ethernet ports |
| Management Port | 1 x Serial (RJ45) |
| Storage Type | NAND |
| Storage Size | 16MB |
| Operating Temperature | -20��C to 60��C |
| Max Power Consumption | 42W |
| License Level | 6 |
| Supported Input Voltage | 18-57 V (DC jack); 20-57 V (PoE in) |
