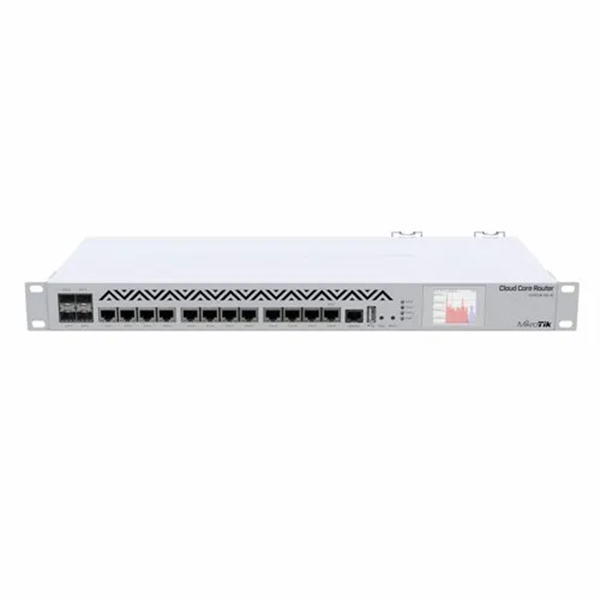

Mikrotik CCR1036-12G-4S Specifications |
|
| Brand | Mikrotik |
| Model | CCR1036-12G-4S |
| Form Factor | 1U rackmount |
| Ethernet Ports | 12x Gigabit Ethernet |
| SFP Cages | 4x SFP cages |
| CPU | 36 cores x 1.2GHz |
| RAM | 4GB |
| Throughput | Up to 16 Gbit/s |
| Fastpath Throughput | 24 mpps |
| Operating System | RouterOS L6 |
| Power Supply | Dual PSU |
| LCD Display | Yes |
| Dimensions | 355 x 436 x 44 mm |
| Serial Port | 1x DB9 RS232C |
| Storage | 1GB NAND |
| Max Power Consumption | 125W |
| Temperature Range | -20��C to 60��C |
| Operating Humidity | 5% to 95% non-condensing |
| Number of Fans | 3 |
| MTBF | 200,000 hours |
