| Product Name |

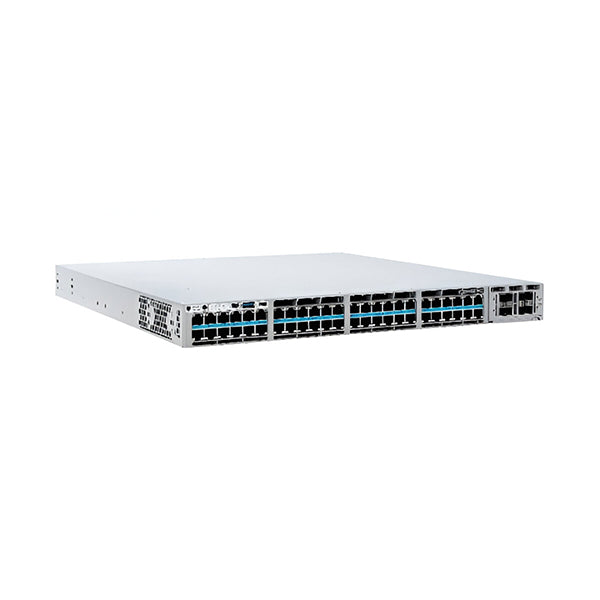

Meraki C9300X-48HX-M |
| Type |
Managed Switch |
| Model |
Catalyst 9300X Series |
| Ports |
48 x mGig (1G/2.5G/5G/10G) RJ45 Ports |
| Data Rate |
1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps (Auto-negotiable for each port) |
| Form Factor |
1U Rack Mountable |
| Stacking Capacity |
Up to 8 switches, with 1 Tbps of stacking bandwidth (requires C9300X-STAK-KIT2-M) |
| Stacking Bandwidth |
1 Tbps (1 Terabit per second) of dual dedicated hardware stacking bandwidth |
| Layer |
Layer 2 and Layer 3 Switching |
| Switching Capacity |
2000 Gbps |
| Power Supply |
Dual Power Supply Option (for redundancy) |
| PoE Support |
UpoE+ (Universal Power over Ethernet Plus) - Up to 60W per port (supports power-hungry devices like IP phones, wireless access points, security cameras) |
| PoE Budget |
590W (standard) or 1690W (with optional secondary power supply) |
| Uplink Ports |
4 x 10G/25G SFP28 (Combo with RJ45) |
| Operating Temperature |
0°C to 40°C |
| Dimensions (WxHxD) |
44.5 x 4.45 x 29.6 cm (WxHxD) |
| Weight |
8.0 kg |
| Mounting Type |
Rack Mountable, 1U |
| Secure Connect |
Available in a future software release |
| Adaptive Policy |
Advanced License required for feature |
| Dual Power Supply Option |
Yes (for redundancy) |
| Requires Stacking Kit |
C9300X-STAK-KIT2-M (includes 2 stacking ports and 50cm cable) |
| Modular Uplink Options |
40G/100G and 10G/25G modular uplink options (sold separately) |
| StackPower Management |
Yes |
| Switching Bandwidth |
2000 Gbps (Switching capacity) |
