| Specification | Details |
|---|---|

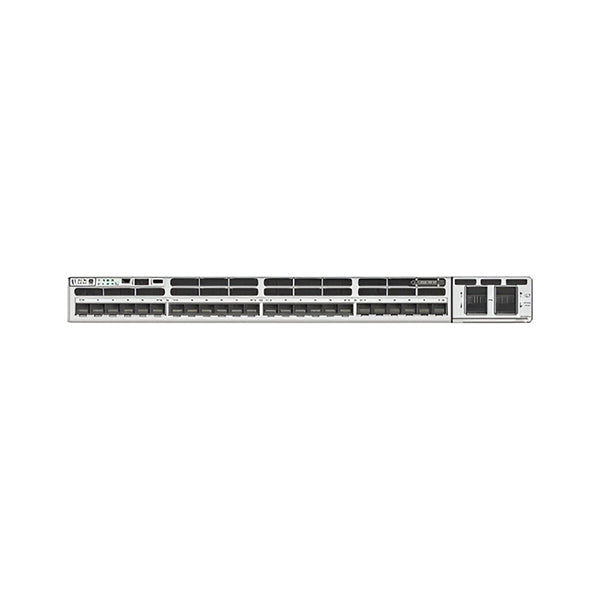

| Product Name | Meraki C9300X-24Y-M |
| Type | Managed Switch |
| Model | Catalyst 9300X Series |
| Ports | 24 x 1/10/25G SFP28 (Fiber) Ports |
| Data Rate | 1 Gbps, 10 Gbps, 25 Gbps (Auto-negotiable for each port) |
| Form Factor | 1U Rack Mountable |
| Stacking Capacity | Up to 8 switches, with 320 Gbps of stacking bandwidth (requires C9300X-STAK-KIT2-M) |
| Stacking Bandwidth | 320 Gbps of dual dedicated hardware stacking bandwidth |
| Layer | Layer 2 and Layer 3 Switching |
| Switching Capacity | 480 Gbps |
| Power Supply | Dual Power Supply Option (for redundancy) |
| PoE Support | No PoE (Non-PoE model) |
| Uplink Ports | 24 x SFP28 (supports 1G, 10G, 25G) |
| Operating Temperature | 0 to 40°C |
| Dimensions | 44.5 x 4.45 x 29.6 cm (WxHxD) |
| Weight | 6.8 kg |
| Mounting Type | Rack Mountable, 1U |
| Secure Connect | Available in a future software release |
| Adaptive Policy | Advanced License required for feature |
| Dual Power Supply Option | Yes (for redundancy) |
| Requires Stacking Kit | C9300X-STAK-KIT2-M (includes 2 stacking ports and 50cm cable) |
