| Product Name |

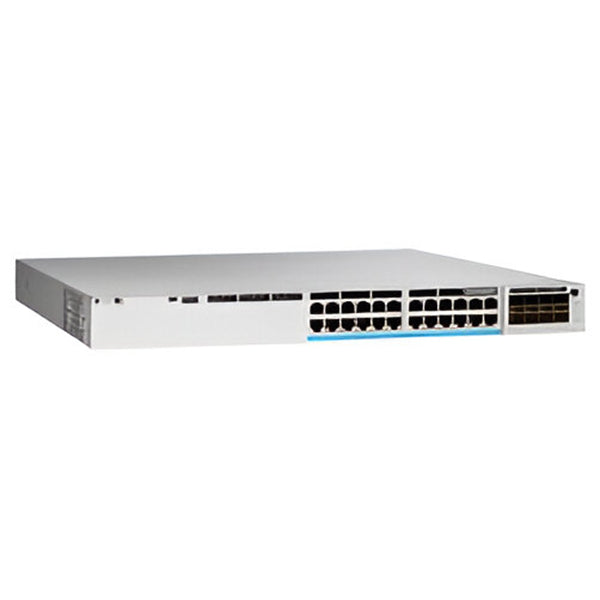

Meraki C9300X-24HX-M |
| Type |
Managed Switch |
| Model |
Catalyst 9300X Series |
| Ports |
24 x mGig (1G/2.5G/5G/10G) RJ45 Ports |
| Data Rate |
1 Gbps, 2.5 Gbps, 5 Gbps, 10 Gbps (Auto-negotiable for each port) |
| Form Factor |
1U Rack Mountable |
| Stacking Capacity |
Up to 8 switches, with 320 Gbps of stacking bandwidth (requires C9300X-STAK-KIT2-M) |
| Stacking Bandwidth |
320 Gbps of dual dedicated hardware stacking bandwidth |
| Layer |
Layer 2 and Layer 3 Switching |
| Switching Capacity |
480 Gbps |
| Power Supply |
Dual Power Supply Option (for redundancy) |
| PoE Support |
UpoE+ (Universal Power over Ethernet Plus) for up to 60W per port |
| Uplink Ports |
4 x 10G/25G SFP28 (combo with RJ45) |
| Operating Temperature |
0 to 40°C |
| Dimensions |
44.5 x 4.45 x 29.6 cm (WxHxD) |
| Weight |
6.8 kg |
| Mounting Type |
Rack Mountable, 1U |
| Secure Connect |
Available in a future software release |
| Adaptive Policy |
Advanced License required for feature |
| Dual Power Supply Option |
Yes (for redundancy) |
| Requires Stacking Kit |
C9300X-STAK-KIT2-M (includes 2 stacking ports and 50cm cable) |
