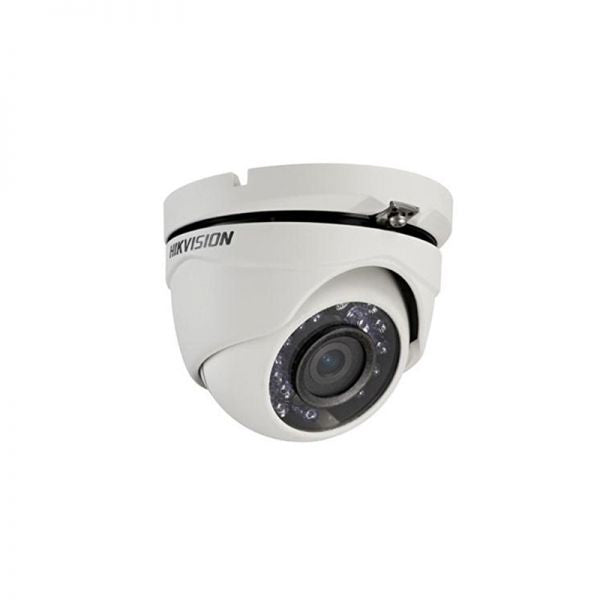

DS-2CE56D0T-IRMF Specification |
|
|
Camera |
|
| Image Sensor | 2MP CMOS Image Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1920(H)*1080(V) |
| Min. Illumination | 0.01 Lux @ (F1.2, AGC ON),0 Lux with IR |
| Shutter Time | 1/25(1/30) s to 1/50,000 s |
| Lens | 2.8mm, 3.6mm, 6mm optional |
| Lens Mount | M12 |
| Adjustment Range | Pan: 0 - 360°, Tilt: 0 - 75°, Rotation: 0 - 360° |
| Day& Night | IR cut filter with auto switch |
| Video Frame Rate | 1080p@25fps/1080p@30fps |
| HD Video Output | 1 Analog HD output |
| Synchronization | Internal Synchronization |
| S/N Ratio | More than 62 dB |
|
General |
|
| Operating Conditions |
-40 °C - 60 °C (-40 °F - 140 °F) Humidity 90% or less (non-condensing) |
| Power Supply | 12 VDC±15% |
| Power Consumption | Max. 4W |
| Weather Proof | IP66 |
| IR Range | Up to 20m |
| Dimension | 89.47 × 67.6 mm (3.52" × 2.7") |
