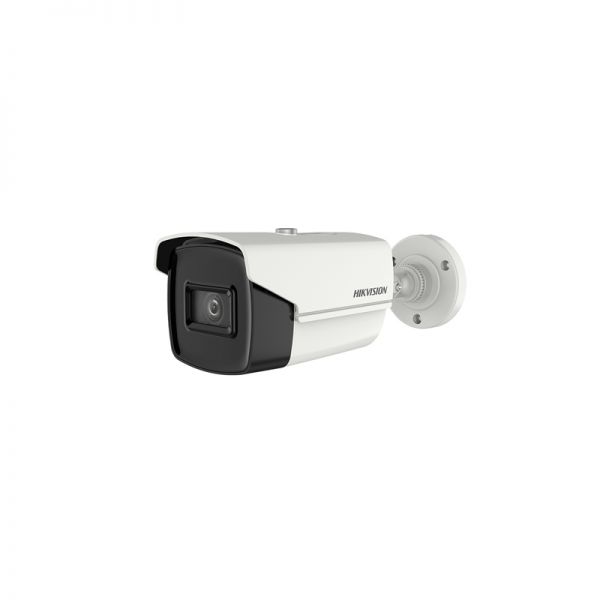

DS-2CE16D3T-IT3F Specification

Camera

Image Sensor

2.0 megapixel progressive scan CMOS

Signal System

PAL/NTSC

Effective Pixels

1920(H)*1080(V)

Shutter Time

1/25(1/30) s to 1/50,000 s

Lens Mount

M12

Adjustment Range

Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°

Day& Night

IR cut filter

Video Frame Rate

PAL: 1080p@25fps

NTSC: 1080p@30fps

HD Video Output

1 Analog HD output

Synchronization

Internal Synchronization

Up the Coax

Support

Menu

Backlight Compensation

Yes

D/N Mode

Auto/Color/BW (Black and White)

AGC

Low/middle/high

WDR

Yes

Language

English

Function

Brightness, Sharpness, DNR, Mirror, Smart IR

Interface

Video Out

1 HD analog output

General

Material

Front cover: Metal

Main body: Plastic

Bracket: Plastic

Operating Conditions

-40 °C - 60 °C (-40 °F - 140 °F)

Humidity 90% or less (non-condensing)

Power Supply

12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera.

Power Consumption

Max. 5.6 W

Weather Proof

IP67

IR Range

Up to 50m

Dimension

81.9 mm × 86.7 mm × 217.9 mm (3.22" × 3.41" × 8.58" )
