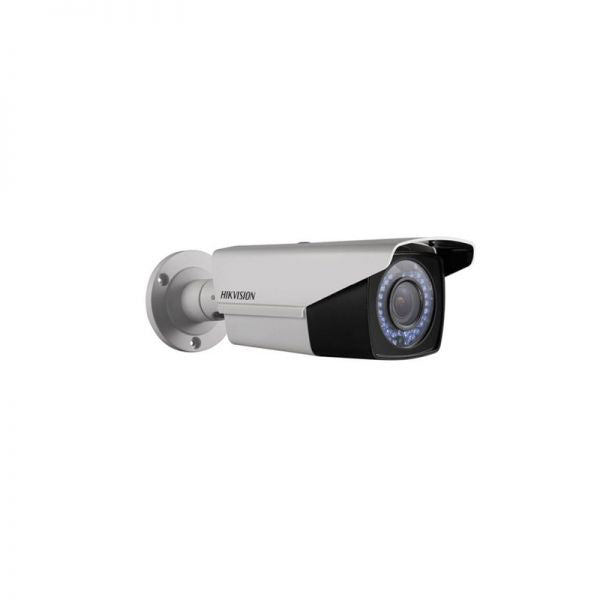

DS-2CE16C2T-VFIR3 Specification

Camera

Image Sensor

1.3MP CMOS Image Sensor

Signal System

PAL/NTSC

Effective Pixels

1280(H)x960(V)

Min. Illumination

0.01 Lux @(F1.2,AGC ON), 0 Lux with IR

Shutter Time

1/25(1/30) s to 1/50,000 s

Lens

2.8-12mm @ F1.4

Angle of view: 97° - 30.4°

Lens Mount

φ14

Adjustment Range

Pan: 0 - 360°, Tilt: 0 - 90°, Rotation: 0 - 360°

Day& Night

IR cut filter with auto switch

Video Frame Rate

720p@25fps/720p@30fps

HD Video Output

1 Analog HD output

Synchronization

Internal Synchronization

S/N Ratio

More than 62 dB

Menu

Auto White Balance

Auto / Manual

General

Operating Conditions

-40 °C - 60 °C (-40 °F - 140 °F)

Humidity 90% or less (non-condensing)

Power Supply

12 VDC±15%

Power Consumption

Max. 4W

Weather Proof

IP66

IR Range

Up to 40m

Communication

Up the coax

Protocol: Pelco-C(CVBS output), HIKVISION-C(TVI output)

Dimension

92 × 84.8 × 269.6mm(3.62” × 3.34” × 10.6”)
