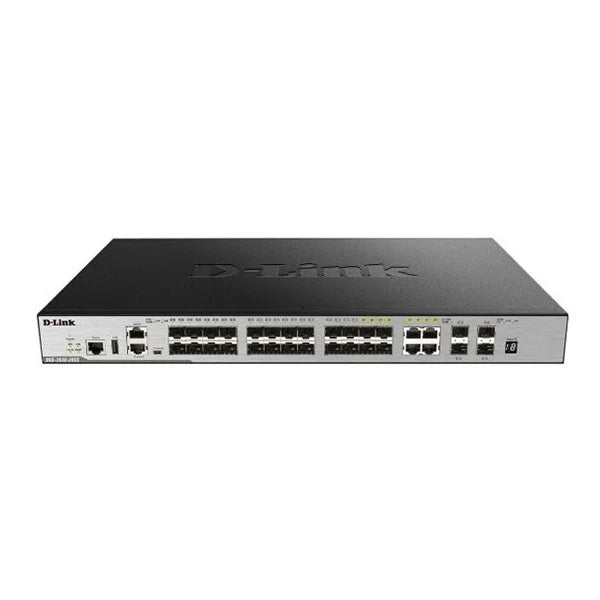

DGS-3630-28SC Specifications |
|
| Brand | D-Link |
| Model | DGS-3630-28SC |
| Port Configuration | 20 Gigabit SFP optical ports, 4 Gigabit optical multiplexing ports, 4 10 Gigabit SFP+ optical ports |
| Switching Capacity | 598 Gbps / 5.98 Tbps |
| Packet Forwarding Rate | 222 Mpps |
| Network Management | Three-layer network management switch |
| Stacking Support | Yes |
| SRM Support | Yes |
| Network Virtualization | Yes |
| ERPS Support | Yes |
| VRRP Support | Yes |
| Dynamic Routing | Yes |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Relative Humidity (Operating) | 5% to 95% non-condensing |
| Dimensions | 440 mm x 44 mm x 210 mm |
| Power Supply | AC input: 100-240 V, DC input: -48 V |
| Power Consumption | 45 Watts |
| Heat Dissipation | 153.4 BTU/hour |
| MTBF | 837,754 hours |
| Approvals and Certifications | CE, FCC, VCCI, BSMI, C-Tick |
