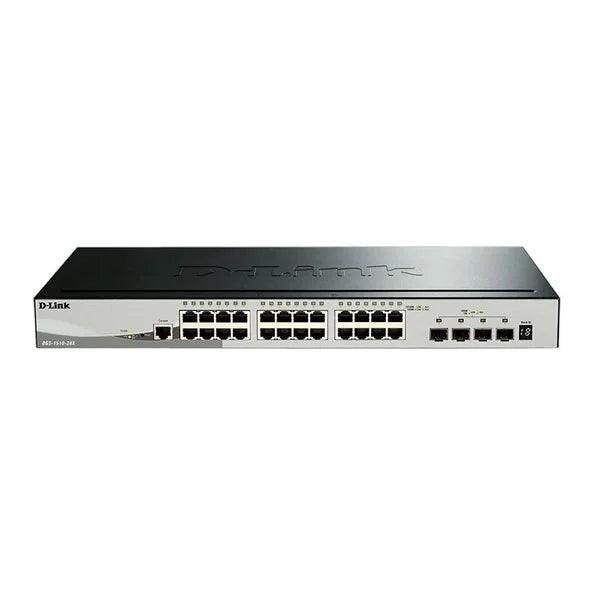

DGS-1510-28X Specification |
|
| 1000Base-T Interface | 24 |
| 10G SFP+ Interface | 4 |
| Auto MDI/MDIX | Yes |
| Console Port | Yes |
| 10/100/1000BASE-T ports | 24 |
| 10G SFP+ ports | 4 |
| Max. Packet Forwarding Rate | 95.24 Mpps |
| Switch Capacity | 128 Gbps |
| Dimension | 440mm x 210mm x 44mm |
| Operation Temperature | -5 -50°C |
| Storage Temperature | -20-70°C |
| Operation Humidity | 0% ~ 95% RH |
| Storage Humidity | 0% ~ 95% RH |
| Maximum Power Consumption | 22.3 W |
| Standby Power Consumption | 14.6 W/100V, 15.2 W/240V |
| Maximum Heat Dissipation | 76.04 BTU/hr |
| Acoustic | 42.7 dB(A) |
| MTBF | 516,593 hours |
| Power Input | 100 - 240 VAC |
| CPU Speed | 400MHz |
| DRAM Size | 256MB |
| Flash Memory Size | 32MB |
| Packet Buffer Size | 1.5MB |
| FAN | 1 DC Fan |
| Comply witd RoHS 6 | Yes |
| Energy Efficiency Etdernet (EEE) | Yes |
| Power Saving By Link Status | Yes |
| Power Saving By LED Shut-Off | Yes |
| Power Saving By Port Shut-Off | Yes |
| Power Saving By System Hibernation | Yes |
| Physical Stacking | Yes |
| Physical Stacking Bandwidtd | 40 G |
| Units Per Physical Stack | 6 |
| D-Link Single IP Management (SIM) | Yes |
| Units Per SIM Stack | 32 |
| MAC Address Table Size | 16384 |
| Black Hole MAC Address | Yes |
| 802.3x Flow Control | Yes |
| Head-of-line (HOL) Blocking Prevention | Yes |
| 802.1D Spanning Tree (STP) | Yes |
| 802.1w Rapid Spanning Tree (RSTP) | Yes |
| 802.1s Multiple Spanning Tree (MSTP) | Yes |
| Root Restriction | Yes |
| G.8032 ERPS | Yes |
| 802.1AX Link Aggregation | Yes |
| Link Aggregation Group Per Device | 32 |
| 802.3ad Link Aggregation | Yes |
| Max Port Per Link Aggregation Group | 8 |
| Port Mirroring | Yes |
| Flow-based (ACL) mirroring | Yes |
| Jumbo Frame | 9216 |
| Loopback Detection (LBD) | Yes |
| IGMP Snooping | Yes |
| Max IGMP Snooping Groups | 512 |
| IGMP Snooping Fast Leave | Yes |
| IGMP Proxy Reporting | Yes |
| MLD Snooping | Yes |
| MLD Snooping Groups | Yes |
| MLD Snooping Fast Leave | Yes |
| MLD Proxy Reporting | Yes |
| 802.1Q VLAN | Yes |
| VLAN Groups | 4094 |
| Port-based VLAN | Yes |
| 802.1v Protocol-based VLAN | Yes |
| Voice VLAN | Yes |
| MAC-based VLAN | Yes |
| Auto Surveillance VLAN | Yes, 2.1 |
| GVRP | Yes |
| Asymmetric VLAN | Yes |
| IP Interface | Yes |
| Max Number of IP Interface | 16 |
| ARP | Yes |
| ARP Entries | 512 |
| Gratuitous ARP | Yes |
| ND Entries | Yes |
| UDP Helper | Yes |
| Default Route | Yes |
| Static Route | Yes |
| Number of Queue | 8 |
| Class of Service (CoS) | Yes |
| Remark 802.1p priority | Yes |
| Remark ToS/DSCP | Yes |
| Rate Limiting | Yes |
| Queue Handling | Yes |
| Strict Priority Queue (SPQ) | Yes |
| Weighted Round Robin (WRR) | Yes |
| Deficit Round Robin (DRR) | Yes |
| SPQ + WRR | Yes |
| Port-based Bandwidtd Control | Yes |
| Max Access Control List (ACL) Entries | Yes |
| MAC Access List | Yes |
| IP Access List | Yes |
| IPv6 Access List | Yes |
| Time based ACL | Yes |
| SSH | Yes |
| SSL | Yes |
| Port Security | Yes |
| Broadcast/Multicast/Unicast Storm Control | Yes |
| Traffic Segmentation | Yes |
| IP Source Guard | Yes |
| DHCP Snooping | Yes |
| IPv6 Snooping | Yes |
| Dynamic ARP Inspection (DAI) | Yes |
| DHCPv6 Guard | Yes |
| IPv6 Route Advertisement (RA) Guard | Yes |
| IPv6 ND Inspection | Yes |
| Duplicate Address Detection (DAD) | Yes |
| D-Link Safeguard Engine | Yes |
| DHCP Server Screening | Yes |
| ARP Spoofing Prevention | Yes |
| BPDU Attack Protection | Yes |
| DoS Attack Prevention | Yes |
| 802.1X | Yes |
| Port based 802.1X Autdentication | Yes |
| Host based 802.1X Autdentication | Yes |
| Identity Driven 802.1X Policy Assignment | Yes |
| Web-based Access Control (WAC) | Yes |
| Port based WAC Autdentication | Yes |
| Host based WAC Autdentication | Yes |
| Identity Driven WAC Policy Assignment | Yes |
| Japanese Web-based Access Control (JWAC) | Yes |
| Host based JWAC Autdentication | Yes |
| Port based JWAC Autdentication | Yes |
| Identity Driven JWAC Policy Assignment | Yes |
| Port based MAC Autdentication | Yes |
| MAC-based Access Control (MAC) | Yes |
| Host based MAC Autdentication | Yes |
| Identity Driven MAC Policy Assignment | Yes |
| Compound Autdentication | Yes |
| Guest VLAN | Yes |
| Autdentication for Management Access | Yes |
| Privilege Level for Management Access | 5 |
| RADIUS | Yes |
| RADIUS Accounting | Yes |
| TACACS+ | Yes |
| TACACS+ Accounting | Yes |
| Cable Diagnostics | Yes |
| Optical Transceiver Digital Diagnostic Monitoring (DDM) | Yes |
| Network Time Protocol (NTP) | Yes |
| Simple Network Time Protocol (SNTP) | Yes |
| Command Line Interface (CLI) | Yes |
| Web-based GUI | Yes |
| Telnet Server | Yes |
| Telnet Client | Yes |
| SNMP | Yes |
| TFTP Client | Yes |
| SNMP Trap | Yes |
| ZModem | Yes |
| RMONv1 | Yes |
| System Log | Yes |
| LLDP | Yes |
| D-Link Discover Protocol (DDP) | Yes (v0.25) |
| LLDP-MED | Yes |
| DHCP/BootP Client | Yes |
| DHCP Auto-configuration | Yes |
| Flash file system | Yes |
| DHCP relay | Yes |
| Multiple Images | Yes |
| Multiple Configurations | Yes |
| Editable System Prompt | Yes |
| Editable Login Banner | Yes |
| DNS Client | Yes |
| Password Encryption | Yes |
| Debug Command | Yes |
| Ping | Yes |
| sFlow | Yes |
| Traceroute | Yes |
| D-Link Network Assistant | Yes |
| Smart Wizard | Yes |
| SSH | Yes |
| SSL | Yes |
| Store-and-Forwarding | Yes |
