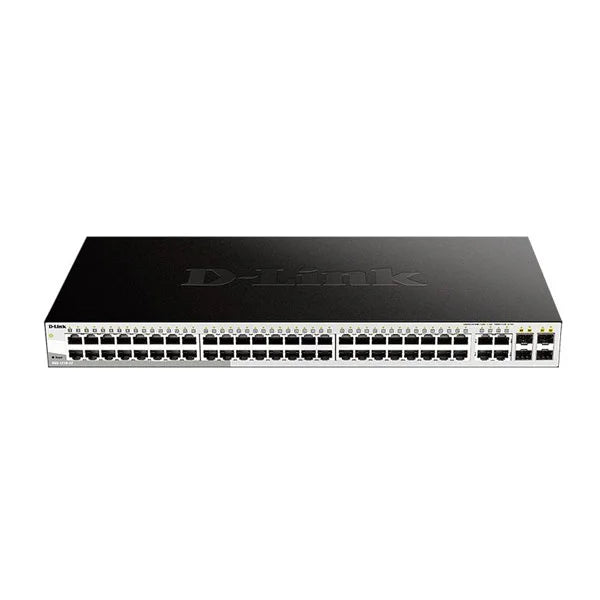

DGS-1210-52 Specification
|
| 1000Base-T Interface |
48 |
| Combo 1000Base-T/SFP |
4 |
| Auto MDI/MDIX |
Yes |
| 10/100/1000BASE-T ports |
48 |
| Combo 10/100/1000BASE-T/SFP ports |
4 |
| Switch Capacity |
104 Gbps |
| Max. Packet Forwarding Rate |
77.4 Mpps |
| Store & Forwarding Forwading |
Yes |
| Dimension |
440mm x 210 mm x 44mm |
| Operation Temperature |
-5 - 50°C |
| Storage Temperature |
-20-70°C |
| Operation Humidity |
0% - 95% RH |
| Storage Humidity |
0% ~ 95% RH |
| Operating Altitude |
1500 meters |
| Maximum Power Consumption |
34.85 W/100 V 34.2 W/240 V |
| Standby Power Consumption |
13.7 W/100V / 13.9 W/240V |
| Maximum Heat Dissipation |
118.92 BTU/hr (100V) 116.7 BTU/hr (240V) |
| Acoustic |
0 dB |
| MTBF |
400,667 hours |
| CPU Speed |
700MHz |
| DRAM Size |
128MB |
| Flash Memory Size |
32MB |
| Packet Buffer Size |
12Mbits |
| FAN |
Fanless |
| Power Input |
100-240 VAC |
| Comply witd RoHS 6 |
Yes |
| Energy Efficiency Etdernet (EEE) |
Yes |
| Power Saving By Link Status |
Yes |
| Power Saving By Cable Lengtd |
Yes |
| Power Saving By Port Shut-Off |
Yes |
| Power Saving By System Hibernation |
Yes |
| 802.3x Flow Control |
Yes |
| Head-of-line (HOL) Blocking Prevention |
Yes |
| MAC Address Table Size |
16K |
| 802.1D Spanning Tree (STP) |
Yes |
| 802.1w Rapid Spanning Tree (RSTP) |
Yes |
| 802.1s Multiple Spanning Tree (MSTP) |
Yes |
| Root Restriction |
Yes |
| 802.3ad Link Aggregation |
Yes |
| Link Aggregation Group Per Device |
4 |
| Max Port Per Link Aggregation Group |
8 |
| Port Mirroring |
Yes |
| Jumbo Frame |
10,000 Bytes |
| Loopback Detection (LBD) |
Yes |
| IGMP Snooping |
Yes |
| Max IGMP Snooping Groups |
256 |
| IGMP Snooping Fast Leave |
Yes |
| MLD Snooping |
Yes |
| MLD Snooping Fast Leave |
Yes |
| MLD Snooping Groups |
Yes |
| 802.1Q VLAN |
Yes |
| VLAN Groups |
Yes |
| Port-based VLAN |
Yes |
| Voice VLAN |
Yes |
| Auto Surveillance VLAN |
Yes |
| Asymmetric VLAN |
Yes |
| IP Interface |
Yes |
| Max Number of IP Interface |
4 |
| ARP |
Yes |
| ARP Entries |
Yes |
| IPv6 Neighbor Discovery (ND) |
Yes |
| ND Entries |
128 |
| Default Route |
Yes |
| Static Route |
Yes |
| Number of Queue |
Yes |
| Class of Service (CoS) |
Yes |
| Strict Priority Queue (SPQ) |
Yes |
| Weighted Round Robin (WRR) |
Yes |
| Port-based Bandwidtd Control |
Yes |
| Max Access Control List (ACL) Entries |
Yes |
| MAC Access List |
Yes |
| IP Access List |
Yes |
| IPv6 Access List |
Yes |
| SSH |
Yes |
| SSL |
Yes (only support TLS 1.0) |
| Port Security |
Yes |
| Broadcast/Multicast/Unicast Storm Control |
Yes |
| Traffic Segmentation |
Yes |
| Smart IP-MAC-Port Binding (Smart IMPB) |
Yes |
| D-Link Safeguard Engine |
Yes |
| DHCP Server Screening |
Yes |
| ARP Spoofing Prevention |
Yes |
| DoS Attack Prevention |
Yes |
| 802.1X |
Yes |
| Port based 802.1X Autdentication |
Yes |
| Autdentication for Management Access |
Yes |
| RADIUS |
Yes |
| Trusted Host |
Yes |
| Cable Diagnostics |
Yes |
| Simple Network Time Protocol (SNTP) |
Yes |
| Web-based GUI |
Yes |
| Command Line Interface (CLI) |
Yes (Limited CLI via telnet) |
| SNMP |
Yes |
| Telnet Server |
Yes |
| SNMP Trap |
Yes |
| System Log |
Yes |
| TFTP Client |
Yes |
| LLDP |
Yes |
| RMONv1 |
Yes |
| D-Link Discover Protocol (DDP) |
Yes (v0.26) |
| LLDP-MED |
Yes |
| DHCP relay |
Yes |
| DHCP/BootP Client |
Yes |
| Debug Command |
Yes |
| Dual Configurations |
Yes |
| Dual Images |
Yes |
| Ping |
Yes |
| D-Link Network Assistant |
Yes (Chrome edition) |
| Smart Wizard |
Yes |
