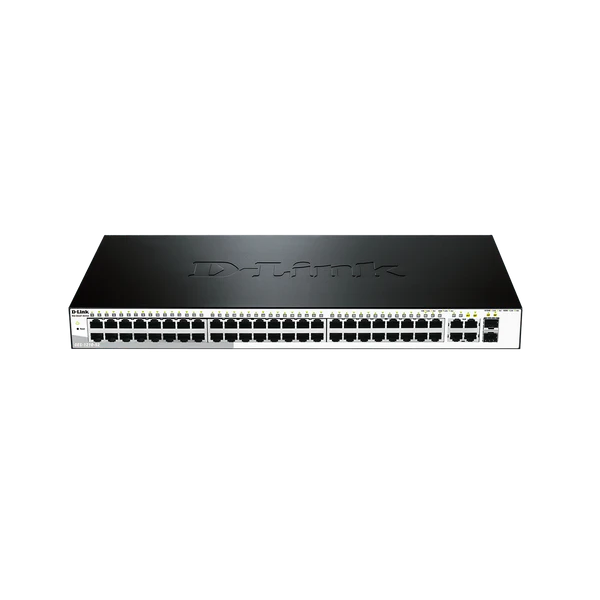

DES-1210-52 Specifications |
|
| Brand | D-Link |
| Model | DES-1210-52 |
| Port Configuration | 48 100M electrical ports + 2 Gigabit electrical ports + 2 Gigabit photoelectric combined ports |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 13.1 Mpps |
| Switch Type | Smart switch |
| Form Factor | Rack type |
| Shell Material | Iron shell |
| Management Interface | Web, SNMP management |
| IEEE Standards | IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3z, 802.3az |
| QoS | 802.1p Priority Queuing |
| MAC Address Table | 16K entries |
| VLAN | Port-based VLAN, 802.1Q VLAN |
| Link Aggregation | Yes, support for port trunking |
| Spanning Tree Protocol | IEEE 802.1D, 802.1w, 802.1s |
| Operating Temperature | 0 to 40 C (32 to 104 F) |
| Storage Temperature | -10 to 70 C (14 to 158 F) |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (L x W x H) | 440 x 210 x 44 mm (17.32 x 8.27 x 1.73 in) |
| Power Supply | 100-240V AC, 50-60Hz |
| Warranty | Limited Lifetime Warranty |
