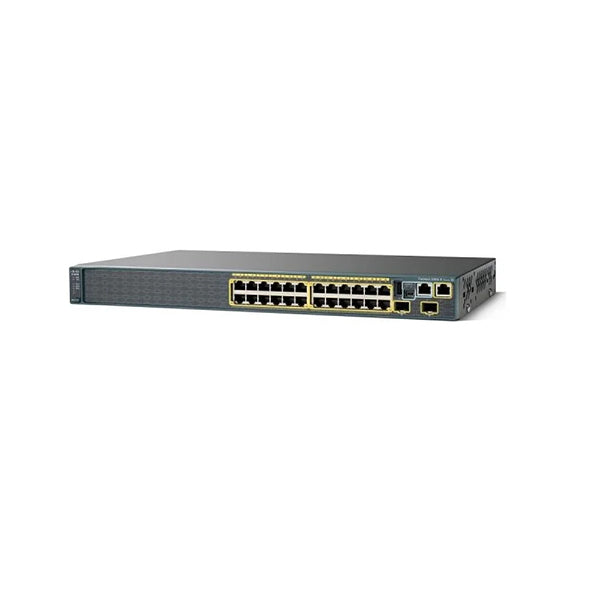

Cisco WS-C2960S-24TS-S Specification |
|
| Flash memory | 64 MB |
| DRAM | 128 MB |
| Forwarding Performance | 38.7 mpps |
| Dimensions (H x W x D) |
Inches：1.75 x 17.7 x 11.8 Centimeters：4.5 x 45 x 30 |
| Weight |
Pounds：10 Kilograms：4.5 |
| Acoustic Noise |
Measured per ISO 7779 and declared per ISO 9296. Bystander positions operating mode at 25°C ambient. |
| Sound Pressure |
LpA (Typical)：44 dB LpAD (Maximum)：47 dB |
| Sound Power |
LwA (Typical)：5.4 B LwAD (Maximum)：5.7 B |
| MTBF in hours | 335,014 |
| Voltage (Autoranging) | 100 to 240 VAC |
| Power Rating | 0.08 kVA |
| Measured Power Consumption* |
100 Percent Throughput：36 5 Percent Throughput：36 |
| Safety certifications |
UL 60950-1, Second Edition CAN/CSA 22.2 No. 60950-1, Second Edition TUV/GS to EN 60950-1, Second Edition CB to IEC 60950-1 Second Edition with all country deviations CE Marking NOM (through partners and distributors) |
| Electromagnetic emissions (EMC) |
FCC Part 15 Class A EN 55022 Class A (CISPR22) EN 55024 (CISPR24) AS/NZS CISPR22 Class A CE CNS13438 Class A MIC GOST China EMC Certifications |
| Environmental | Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU |
| Telco | Common Language Equipment Identifier (CLEI) code |
| US Government Certifications | USGv6 and IPv6 Ready Logo |
