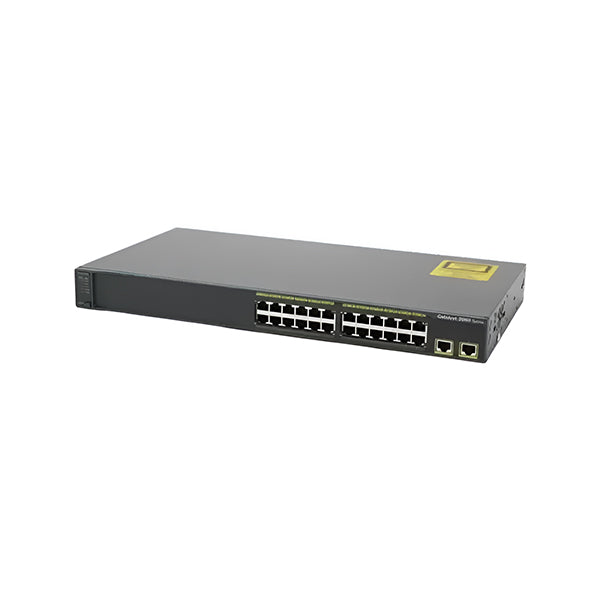

Cisco WS-C2960-24TT-L Specifications |
|
| Type | Fixed |
| Topology | Ethernet (10/100BaseTX) Ethernet (10/100/1000BaseT) |
| Maximum Port density | 24 10/100 ports |
| Uplinks | 2 10/100/1000 ports |
| Modular/Expansion Slots | n/a |
| Architecture | Layer 2 Switching (basic connectivity), Layer 2 Switching (intelligent services), Voice Enabled |
| Form Factor | Fixed, Rack Mountable, Standalone/Clustering |
| Dimensions | 1.73 x 17.5 x 9.3 in. |
| DRAM | 16 MB |
|
Features |
|
| Specialized Service Modules | n/a |
|
High Availability/Resilliency |
|
| Hardware Redundancy | External Redundant Power Supply |
| High Availability/Resilliency | PVST, Broadcast Suppression, Unicast Suppression, Mulitcast Suppression, Spanning Tree, Portfast, Uplink Fast, Backbone Fast, 802.1s, 802.1w |
|
Management |
|
| Management features | SPAN, RSPAN, CiscoView, Cisco Discover Protocol (CDP), Virtual Trunking Protocol (VTP), Telnet Client, BOOTP, TFTP, CiscoWorks, CWSI, RMON, SNMP, Clustering, Web-Based Management |
|
Scalability |
|
| WAN Interface Support | n/a |
| Throughput | 6.5 Mpps |
| Backplane Capacity | 16 Gbps |
| Number of VLANs | 255 |
