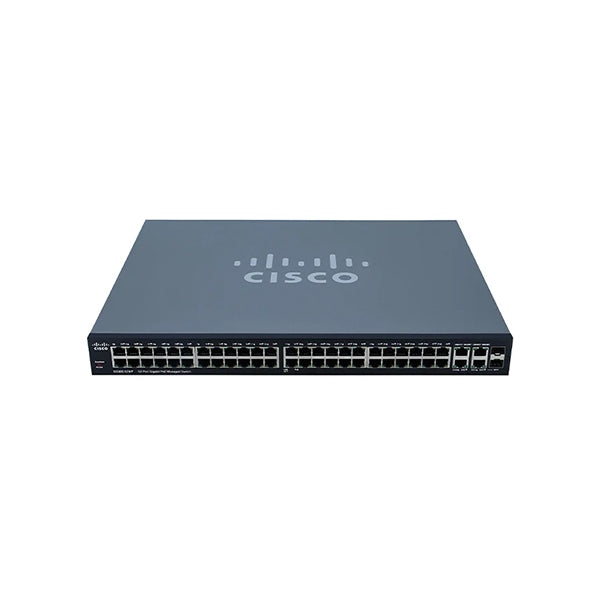

SG300-52MP Specification
|
| Jumbo Frame Support: |
9 KB |
| Routing Protocol: |
Static IPv4 routing |
| Minimum Storage Temperature: |
-4 F |
| Depth: |
13.78 inches |
|
MTBF:
|
117,130 hours at 45C |
| Cables Included: |
1x Serial Cable |
| Capacity: |
4000 active VLANs |
|
Height:
|
1.73 inches |
| Maximum Operating Temperature: |
104 F |
| MAC Address Table Size: |
16,000 entries |
| Localization: |
North America |
| Width: |
17.3 inches |
| Enclosure Type: |
Desktop, rack-mountable - 1U |
| Maxiumum Storage Temperature: |
158 F |
| Ports: |
48-port 10/100/1000 + 4 combo Gigabit SFP |
| Device Type: |
Switch - 52 ports - L3 - managed |
| Humidity Operating Range: |
10-90% (non-condensing) |
|
Weight:
|
11.73 lbs |
| Minimum Operating Temperature: |
32 F |
| Interfaces: |
48 x 10BASE-T/100BASE-TX/1000BASE-T - RJ-45 - PoE | 2 x 10BASE-T/100BASE-TX/1000BASE-T - RJ-45 | 1 x console - 9 pin D-Sub (DB-9) - management | 2 x SFP (mini-GBIC) |
| Humidity Storage Range: |
10-90% (non-condensing) |
| Flash Memory: |
16 MB |
| Voltage Required: |
AC 120/230 V ( 50/60 Hz ) |
| Performance: |
Switching capacity: 104 Gbps; Forwarding performance (64-byte packet size): 77.38 Mpps |
| Power Over Ethernet (PoE): |
PoE/PoE+ |
| Status Indicators: |
Link activity, port transmission speed, system |
| Ram: |
128 MB |
| Authentication Method: |
SSH, RADIUS, TACACS+ |
