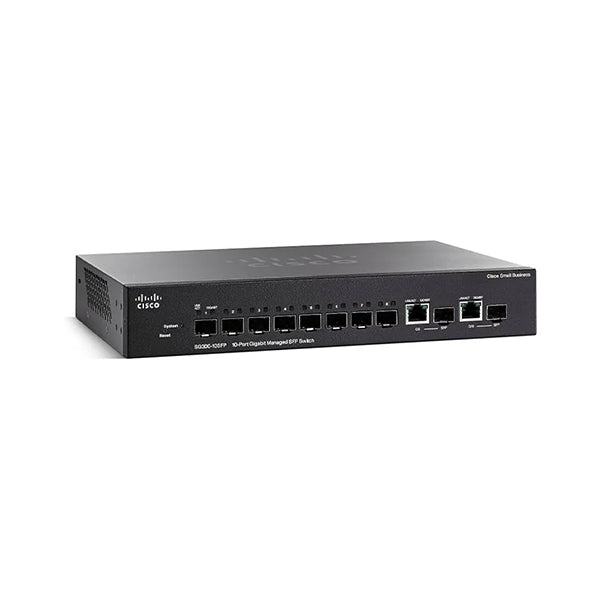

SG300-10SFP Specification |
|
| Product Number | SG300-10SFP |
| Product Description | 8 10/100/1000 ports (SFP), 2 Combo mini-GBIC ports |
| General | |
| Device Type | Switch - 10 ports - L3 - managed |
| Enclosure Type | Desktop, rack-mountable - 1U |
| Ports | 10-port Gigabit SFP (2 combo) |
| Power Over Ethernet (PoE) | N/A |
| Performance | Switching capacity: 20 Gbps | Forwarding performance (64-byte packet size): 14.88 Mpps |
| MAC Address Table Size | 16,000 entries |
| Capacity | 4000 active VLANs |
| Routing Protocol | Static IPv4 routing |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI |
| Jumbo Frame Support | 9 KB |
| Authentication Method | SSH, RADIUS, TACACS+ |
| Features | Layer 3 switching, Layer 2 switching, DHCP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, STP support, RSTP support, MSTP support, TFTP support, ACL support, QoS, Jumbo Frames support, MLD snooping |
| Compliant Standards | |
| RAM | 128 MB |
| Flash Memory | 16 MB |
| Status Indicators | Link activity, port transmission speed, system |
| Expansion / Connectivity | |
| Interfaces | 10 x SFP (mini-GBIC) | 2 x 10BASE-T/100BASE-TX/1000BASE-T - RJ-45 | 1 x console - 9 pin D-Sub (DB-9) - management |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230V (50/60 Hz) |
| Miscellaneous | |
| Width | 11 in. |
| Depth | 6.68 in. |
| Height | 1.73 in. |
| Weight | 4.68 lbs |
| Cables Included | 1 x serial cable |
| Rack Mounting Kit | Included |
| MTBF | 132,151 hours at 45C |
| Compliant Standards | UL 60950, FCC Part 15 A, CSA 22.2 |
| Localization | Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Manufacturer Warranty | |
| Service & Support | Limited lifetime warranty |
| Service & Support Details | Limited warranty - lifetime replacement - response time: next business day | Technical support - web support - 1 year | Technical support - phone consulting - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 90% (non-condensing) |
