| Specification | Description |
|---|---|

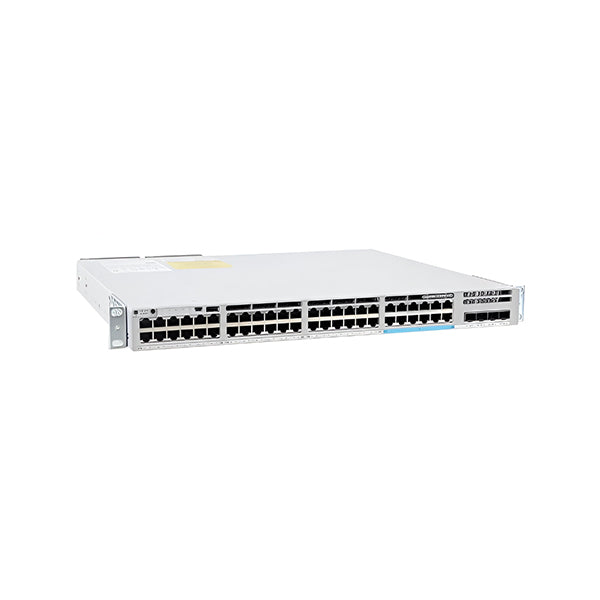

| Product Description | Catalyst 9300 48-port fixed uplinks UPoE, 12xmGig, 4X10G uplinks, Network Essentials |
| FRU Power Supply | Yes |
| FRU Fans | Yes |
| Modular Uplinks | No |
| Stacking Bandwidth Support | 320 Gbps |
| Cisco StackPower | No |
| Catalyst 9800 Embedded WLC | Yes (50 APs) |
| SD-Access Support | Yes (256 Virtual Networks) |
| Total 10/100/1000, Multigigabit copper or SFP Fiber |
48 UPoE 12xmGig |
| Uplink Configuration | 4x 10G fixed uplinks |
| Default AC power supply | 1100W AC |
| Available PoE power | 675W |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes (ARP plus learned routes) |
32,000 (24,000 direct routes and 8000 indirect routes) |
| IPv6 routing entries | 16,000 |
| Multicast routing scale | 8,000 |
| QoS scale entries | 5,120 |
| ACL scale entries | 5,120 |
| Packet buffer per SKU | 16 MB buffer for 24 and 48 port Gigabit Ethernet models |
| FNF entries | 64,000 flow on 24- and 48-port Gigabit Ethernet models |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4094 |
| Total Switched Virtual Interfaces(SVIs) |
1000 |
| Jumbo frames | 9198 bytes |
| Total routed ports per Catalyst 9300 Series stack |
416 |
| Switching capacity | 392 Gbps |
| Switching capacity with stacking | 712 Gbps |
| Forwarding rate | 291.66 Mpps |
| Forwarding rate with stacking | 529.76 Mpps |
| Dimensions (H x W x D) | 4.4 x 44.5 x 40.9 (Chassis only), 4.4 x 44.5 x 48.8 (W/ Default Power Supply), 4.4 x 44.5 x 48.8 (W/ 1100W Power Supply) |
| Mean Time Between Failures–MTBF(hours) |
273,820 |
| Acoustic noise | 45dB typical, 48 dB max (LpA), 5.6B typical, 5.9B max (LwA) |
| Connectors and cabling | 1000BASE-T ports: RJ-45 connectors, 4-pair Cat 5E UTP cabling, Multigigabit-T ports: RJ-45 connectors, 4-pair Cat 5E, Cat 6, Cat 6A UTP cabling, etc. |
